CONTEC CMS6600B PC based EMG/EP system Machine Medical device electromyography EMG/EP System price

FOB Reference Price:Get Latest Price
$1,500.00 - $1,800.00 / Piece | 1 Piece/Pieces (Min. Order)
Report Suspicious Activity
Overview
Quick Details
Place of Origin:
Hebei, China
Brand Name:
CONTEC
Model Number:
CMS6600B
Type:
Pathological Analysis Equipments
Instrument classification:
Class II
A/D conversion resolution:
16 Bit
Sampling ratio:
200kHz
Analysis time:
5-5000ms
Stimulating frequency:
0.1-50Hz
Amplifier part:
Four-channel
Sensitivity:
0.05μV-20mV/Grid
Earth noise EMG:
<= 4μV(Vpp)
Upper limit for Filter:
frequency 20kHz
Lower limit for Filter:
frequency 1Hz
EMG:
EMG
Supply Ability
Supply Ability:
5000 Unit/Units per Month
Packaging & Delivery
Packaging Details
original carton packing box
Port
TianJin

CONTEC CMS6600B PC based EMG/EP system Machine Medical device electromyography EMG/EP System price








Introduction:


The equipment records bioelectricity activity of nerve muscle for determining its function state, which combines with nerve conduction speed, to give patient an auxiliary diagnosis.
Checking contents: EMG(electromygram), MCS(motor nerve conductor velocity), SCS(sensory nerve conductor velocity), F wave, Hreflex, RNS(repetitive nerve stimulation), Blink Reflex, VEP(visual evoked potential), BAEP(brainstem auditory evoked potential), SEP(somatosensory evoked potential), etc.



Features:



Main system partA/D conversion resolution 16 Bit
Sampling ratio 200kHz
Analysis time 5-5000ms
Stimulating frequency 0.1-50Hz
Amplifier part Four-channel
50Hz Ban wave setting
  1. Professional EMG/EP operation platform and perfect test items, complete each test in the shortest time.
  2. Neuro and muscle navigation system, convenient in selecting test part.
  3. Powerful normal values system, contrast with normal data automatically.
  4. Flexible software design, configure system parameters according to requirements.
  5. High-speed data collection, electromagnetic interference suppression, Photoelectric isolation and low noise.
  6. Integrative hardware system, compact in configuration and easy in moving.

Performance:



  • Main system part
    A/D conversion resolution 16 Bit
    Sampling ratio 200kHz
    Analysis time 5-5000ms
    Stimulating frequency 0.1-50Hz
  • Amplifier part
    Four-channel
    Sensitivity 0.05μV-20mV/Grid

    Earth noise EMG <= 4μV(Vpp)
    EP <=0.1μV(Vpp) (1000 times in average)
    Common-mode rejection ratio >= 100dB
    50Hz Ban wave setting:
    Upper limit for Filter-frequency 20kHz

    Lower limit for Filter-frequency 1Hz
    Gain amplifies 25 times-400000 times
  • Stimulator part
    Constant current 0.2-100mA
    Pulse width 50-1000μS
    Short circuit and overloading protection
  • Auditory Stimulator
    Stimulation wave 40Hz Short, Sound Stim
    Stimulation polarity nondense wave, dense wave and alternant wave.
    Sound strength 40-120db (5db per level)
    Stimulation mode left, right, left & right
    Frequency of 40Hz carrier wave 500-8000Hz
  • Visual stimulator
    Mode tessellation, horizontal bar and vertical bar.
    Stimulation view all-view, half-view and quarter-view
    Resolution 3x4, 6x8, 12x16, 24x32, 48x64
    Flash stimulator all quench,left light,right light,l&r light

Physical characteristic:


Dimension 420mm*350mm*46mm(L×W×H)

Net weight 6KG

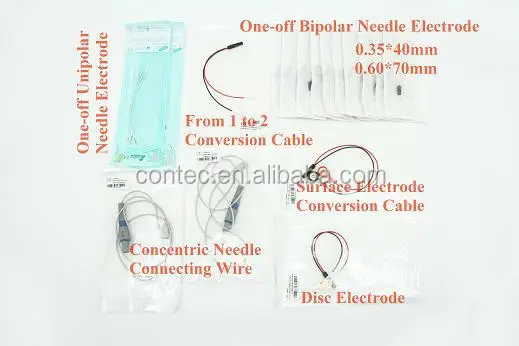

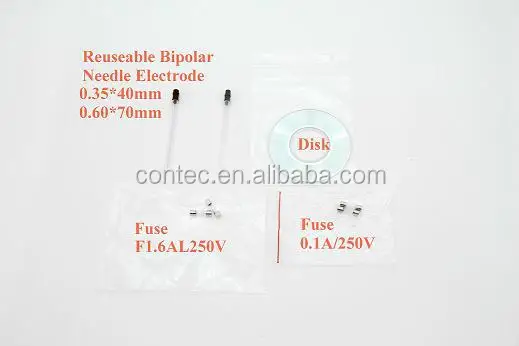

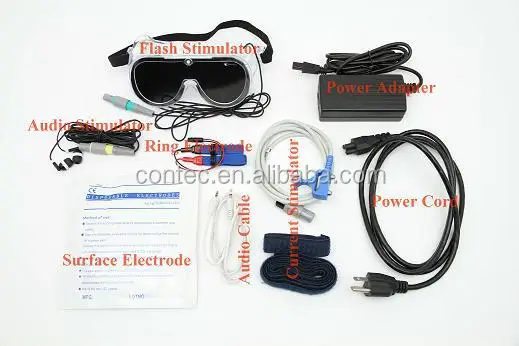

Accessories:



  1.  Disk
  2. Power Cord
  3. Power Adapter
  4. USB Cable
  5. Audio Cable
  6. Earth Cable
  7. Current Stimulator
  8. One-off Bipolar Needle Electrode D039035408, 0.35*40mm, D039060706, 0.60*70mm
  9. Reuseable Bipolar Needle Electrode R039035408, 0.35*40mm, R039060706, 0.60*70mm
  10. Concentric Needle Connecting Wire
  11. 1mm Connecting Lead Wire
  12.  Disc Electrode
  13.  Ring Electrode
  14.  Surface Electrode
  15.  Ground Electrode(Include lead cable)
  16.  One-off Unipolar Needle Electrode
  17.  From 1 to 2 Conversion Cable
  18.  Surface Electrode Conversion Cable
  19. Fuse 0.1A/250V, 5*20mm
  20. Fuse F1.6AL250V, 5*20mm
  21. Flash Stimulator
  22.  Audio Stimulator
