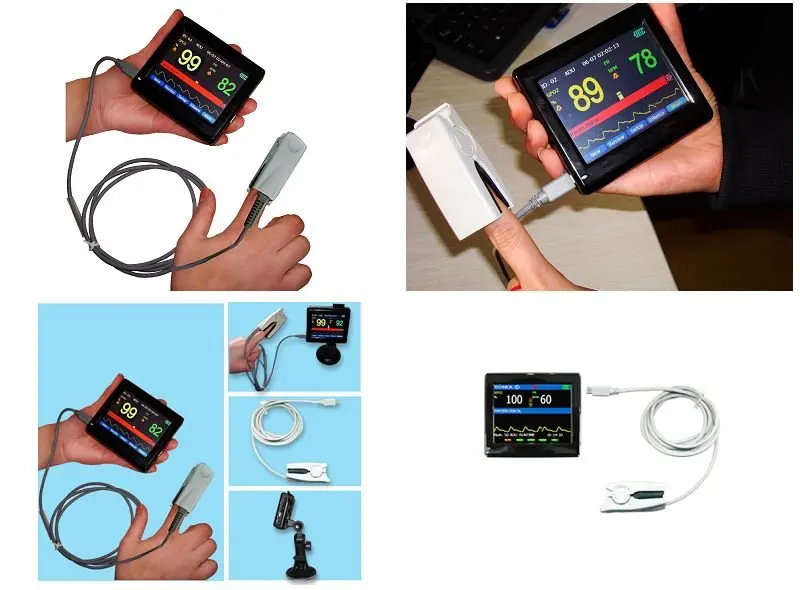

1.Small in volume,light in weight and convenient in carrying 2.Operation of the product is simple, low power consumption 3.SpO2 value display 4.Pulse rate value display, bar graph display 5.Pulse waveform display 6.The display mode can be changed 7.Changeable light-time 8.A pulse rate sound indication 10.With measured data overruns limits and low-voltage alarm function, the upper/down alarm range is adjustable 11.With clock function 12.Battery capacity indication 13.Low-voltage indication: low-voltage indicator appears before working abnormally which is due to low-voltage, and with alarm function 14,.Connected with an external oximeter probe. 15.Trend Graph/Table: Resolution from 1s, 5s, 10s,30s,1min,and so on. Storage of latest 96 hours trend data. 16.Alarm:Adjustable High and Low limits. Three level audible and visual alarm , latest 50 alarm information andÂ waveform displays 8 seconds which 4 seconds are before a certain time when the alarm is turned on and 4 seconds are after appointed time when the alarm is turned on. 17.Upload data: Data stored in SD card can be uploaded to computer andÂ analyzed by SpO2 software.
Display Mode: 3.5" Color TFT display Screen Resolution: 320*240 SpO2 Measuring Range: 0%~100%, (the resolution is 1%). Accuracy: 70%~100%: Â±2% ,Below 70% unspecified. PR Measuring Range: 30bpm~250bpm, (the resolution is 1bpm) Accuracy: Â±2bpm or Â±2% (select larger) Measurement Performance in Weak Filling Condition: SpO2 and pulse rate can be shown correctly when pulse-filling ratio is 0.4%. SpO2 error is Â±4%, pulse rate error is Â±2 bpm or Â±2% (select larger). Resistance to Surrounding Light: The deviation between the value measured in the condition of man-made light or indoor natural light and that of darkroom is less than Â±1%. Power Consumption: less than 300mA Voltage: DC 5.0V Power Supply: Built-in recharge Li-PolymerÂ Battery Working Hour: 7 hours Safety Type: Interior Battery, BF Type
Sell in standard: A user manual A power adapter (GTM41076-0605;CMS0105) A data line A bracket A disk (PC software) An oximeter probe Sell in addition: Other oximeter probe(Refer to probe application instruction for details and notice renewal)
Physical Identity Dimension: 92(W)x82(H)x22(D)mm Weight: About 136g(with battery)
